SMT-----Introduction to Auto SMT line
SMT ：6 lines in total| line | Configuration | Actual production capacity point /H | 24-hour production capacity point |
| A line | YAMAHAYS12+YS12F+JUKI2050+2060+Reflow soldering 8 temperature zone | 44000 | 1056000 |
| B line | JUKI 2050+2050+2060+FX-3RL+Reflow soldering 8 temperature zone | 74000 | 1776000 |
| C line | NXT(M3*4)+2050+2050+NXT(M6)+Reflow soldering 10 temperature zone | 120000 | 2880000 |
| D line | JUKI 2050+2050+2060+Reflow soldering 8 temperature zone | 24000 | 576000 |
| E line | NXT(M3*4)+2050+2050+2060+Reflow soldering 10 temperature zone | 120000 | 2880000 |
| F line | NXT(M3*4)+FX-3RL+2050+NXT(M6)+Reflow soldering 10 temperature zone | 162000 | 3888000 |
SMT-Equipment installation capacity
| Equipment Title | Device Name | Hourly production capacity | notes |
| Mounter | NXT3代 | 24000PCS | |
| Mounter | FX-3 | 50000PCS | |
| Mounter | JUKI2050/60 | 8000PCS | |
| Mounter | YAMAHA YS12/12F | 20000PCS/8000PCS | |
| Mounter | M6 | 8000PCS |
Explanation:
1.PCB maximum mounting 510*360*4
2.The maximum capacity of the material station is 260 feeders
3.Original installation scope 01005-45*150MM
4.Hourly production capacity/544000PCS
5.Daily production capacity: 24 hours, up to 13.056 million points
DIP (plug-in) productivity introduction (2 wave soldering)

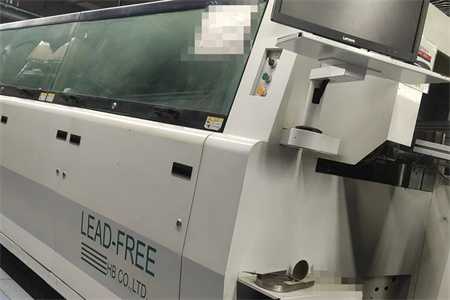

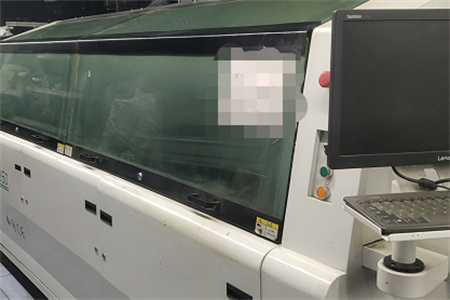

| Wave soldering HB 350 | Wave soldering overall production site |
 |
 |
| The daily production capacity of wave soldering can reach 180000points per line per day (a total of 2 lines: 360000points) | |||||||
| Wave soldering length /MM | PCB assumed length /MM | Wave soldering welding speed MM 1.3-1.5mm (transportation from beginning to end: about 4 minutes) | Wave soldering for 4 minutes can pass the quantity /PCS | Hourly production quantity /PCS | Set each piece/point | Hourly point production capacity | Point production capacity of 12 hours of daily work |
| 4000 | 200 | 4 | 20 | 300 | 50 | 15000 | 180000 |
